1. he materials do the reciprocating-gyratory motion along with the gyratory separator running, and there is not vertical jump during the gyratory screener running period, the little size material will go to the bottom of the flow bed along moving forward, the material particle will pass the mesh aperture when the particle size is less than the gyratory separator aperture size. The reciprocating gyratory motion will make the material flow bed touch the screener mesh surface with longer time for increasing the screening efficiency.
2.The reciprocating gyratory motion of the gyratory separator will spread the material flow bed evenly along with the screener mesh bed after material fall into the inlet, the material flow bed will be very thin after being spread, it is good for material screening , and the material screening precision and capacity will be increased.
3.The screen deck of gyratory separator equipment consist of mesh, spring clamp, ball trays and self-cleaning balls. The self-cleaning balls jump ceaselessly along with gyratory screener operation, the ball could hit the screen mesh in order to let the mesh vibration, so the material blocked in the mesh aperture or adhered to the mesh surface will be cleaned out, it could make sure the aperture ratio so guarantee the screening efficiency.
4.The gyratory separator do not have vertical vibration, so it do not have much load request on the base foundation, it is much lower than the vibration model screener, so the gyratory screener could save steel structure cost, the customer do not need to consider the install load limited.
Gyratory separator, gyratory screener features ：
1. he seal structure of gyratory separator is good, there are circular seal under the gyratory screener top cover and between the screener deck frame, will there is no material flowing away from two side during operation.
2.Screening precision is high
3.The gyratory separator mesh area could be 2m*5m, so it could reach larger screening capacity compare other precision separation equipment.
4.The mesh of the gyratory separator is fixed on the screener frame via spring clamp, it is easy to change mesh.
- Introduction
- Principle
- Industry Application
- Video
- Brochures download

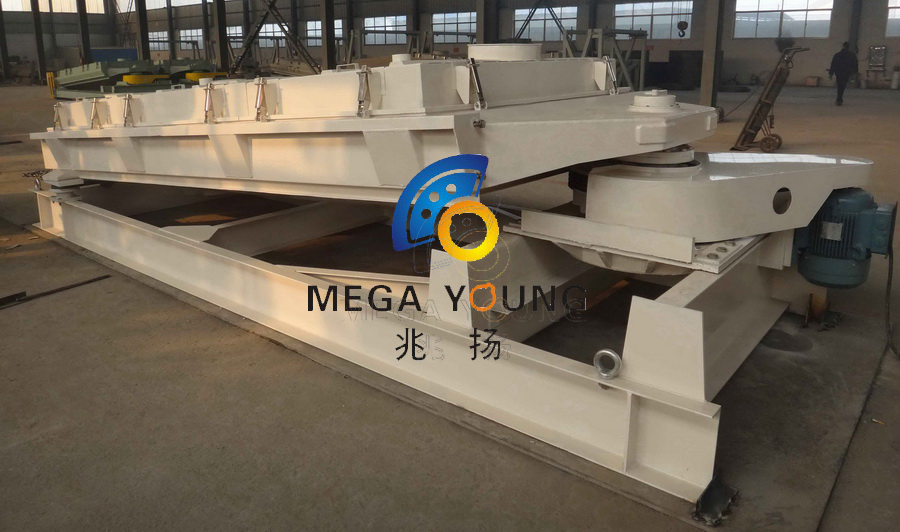

The M series gyratory screener as the major production of our company, compare other type screener and separator equipment,the production amount of M series gyratory screener （Rotex screener model） is largest, and the screening performance has been proved by different customer in different industry application.
After material being feed in the inlet, the M series gyratory screener will distribute the material bed on the screen deck evenly along the screen deck width via itself gyratory motion vibration, so the material bed thickness will be thinner and it is good for screening, so it will enlarge the capacity of screening and seperator equipment. and it could save one feeding equipment for material distribution at the material feeding end.
The M series gyratory screener is do the gyratory reciprocating motion on the level plane, there is no vertical vibration, so it do not request heavy base, if this equipment is installed in the screening building , it could save much cost for civil construction.
M series gyratory screen is the low frequency separator equipment with high amplitude, so it could screen material adequately, the capacity is large and screening efficiency is high.
There are many self-cleaning ball in the screen deck of M series gyratory rotex screener and the balls will impact the working screen mesh when operation for keeping from block.
...
M Series Gyratory screener catalogue
